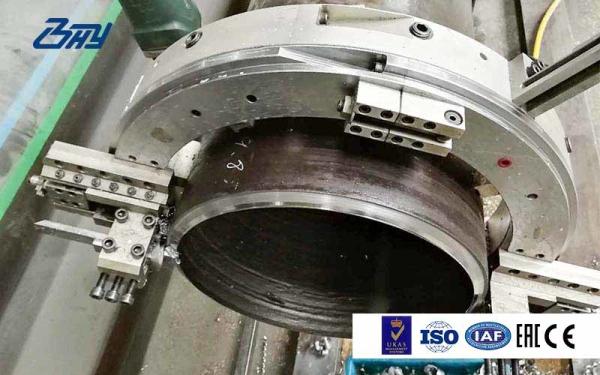

V Shape Pneumatic Pipe Cutting And Beveling Machine
Pneumatic Pipe Cutting And Beveling Machine Function:
1. Simple installation and fast operation;
2. It is applicable to various kinds of materials processing, and available to a wide range of pipe diameter;
3. As it adopts mechanical cutting groove method for cold working, it can maintain well mechanical properties of the material quality.
4. Ideal pipe end preparation with various shapes as flat, V, X, and U shape can meet different technological requirements for butt welding.
Pneumatic Pipe Cutting And Beveling Machine Application
■ Oil and gas field
■ Chemical plant
■ Boiler plant
■ Nuclear power & thermal power
■ Pharmaceutical factory
■ Ship building and repaire
Pneumatic Pipe Cutting And Beveling Machine Features
■ Split frame structure, can be quickly install
■ Cold Cutting and Beveling, no heat affected zones
■ Aeronautical aluminum material ensure portability
■ Low axial and radial clearance
■ Full closed bearing and driving gear system for operation safety
■ Machining OD of pipe from 2” up to 84”
Pneumatic Pipe Cutting And Beveling Machine Basic Info.
| Model | SFM0612P |
| Drive Mode | Pneumatic |
| Air Requirements | 2-3m³/min |
| Application Range (O.D.) | 6" - 12" (168.3-323.9mm) |
| Wall Thickness | ≤80mm |
| Net Weight | 45kg |
| Feed Method | Star wheel system |
| Feed | 0.08mm/r |
| All standard accessories included |
Beveling type
Models
| Model | Processing range (in) | Max wall thickness (mm) | Weight(kg) | Drive mode |
| SFM0206 | 2"~ 6" | 30 | 35 | Pneumatic Hydraulic Electric |
| SFM0408 | 4"~ 8" | 40 | 40 |
| SFM0612 | 6"~12" | 80 | 45 |
| SFM0814 | 8"~14" | 100 | 55 |
| SFM1218 | 12"~18" | 100 | 70 |
* Processing range can be customized according to the pipe diameter.
